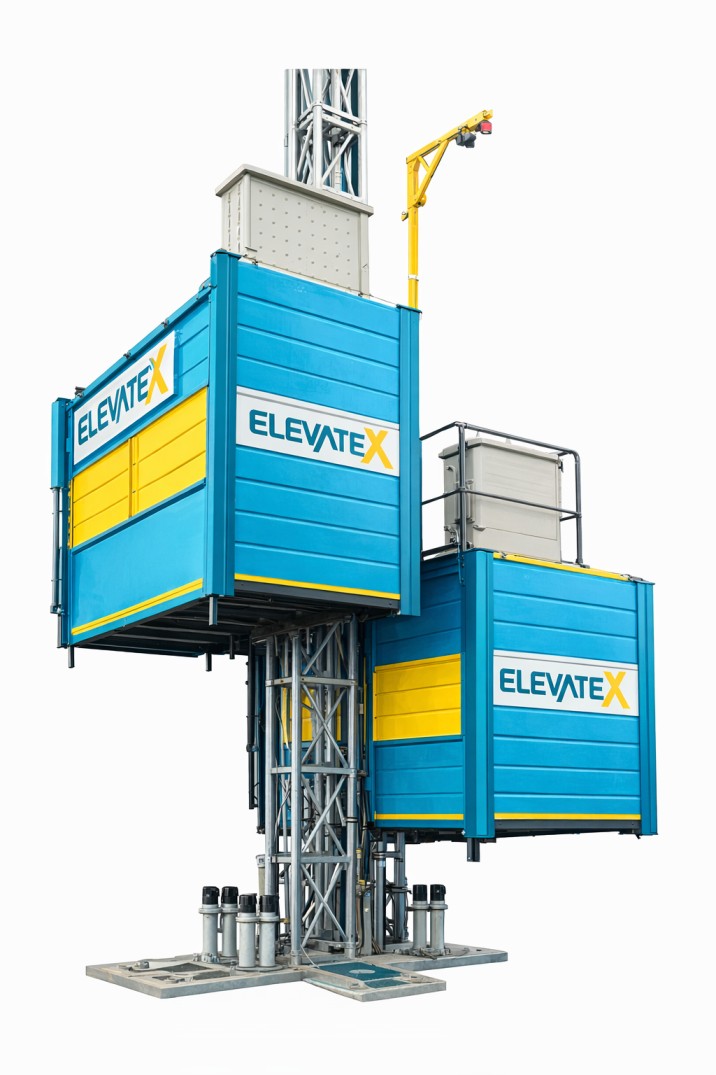

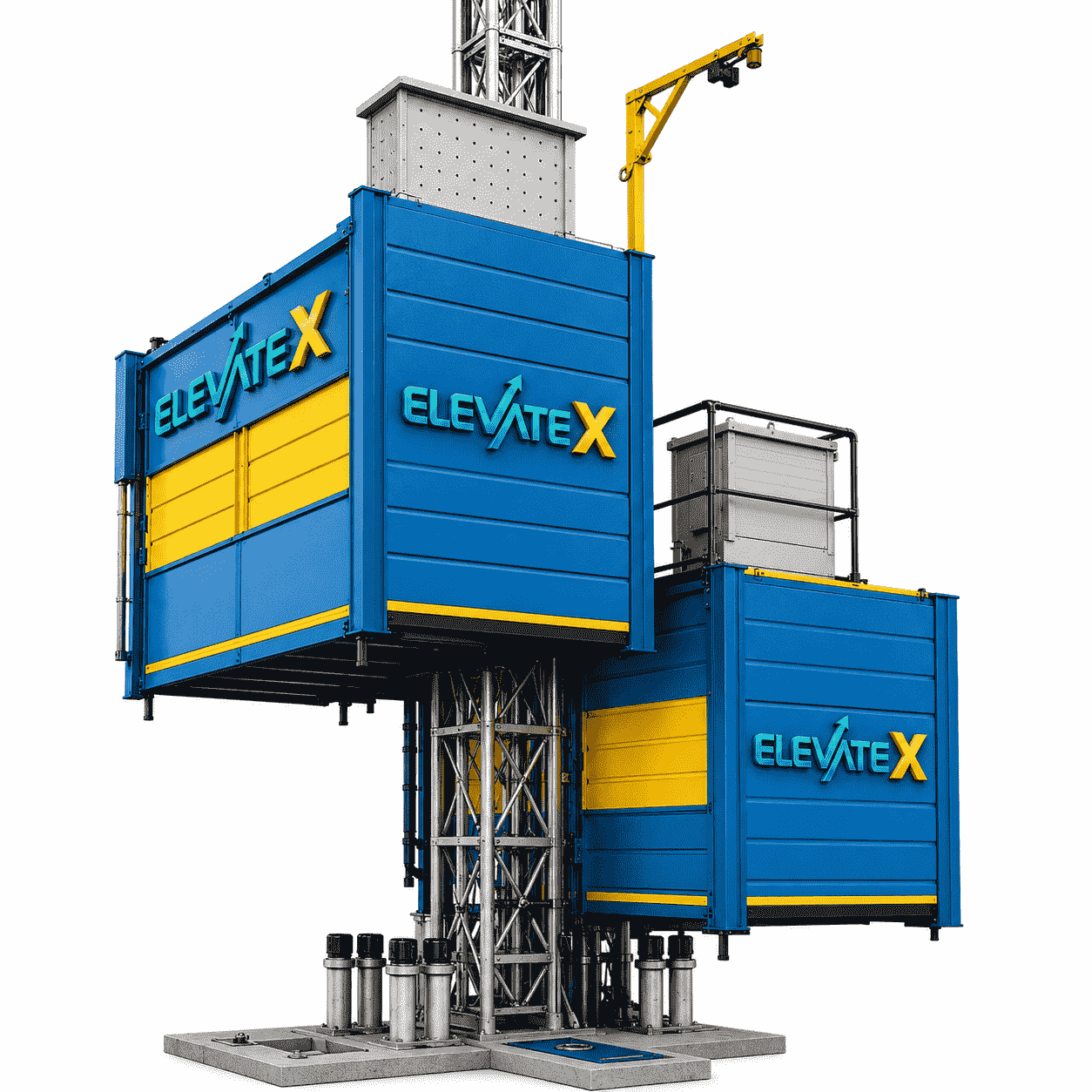

ElevateX Edge Passenger & Material Hoists are designed using advanced Rack & Pinion technology, ensuring maximum safety, reliability, and efficiency for high-rise construction projects. Engineered to meet international safety norms, these hoists are ideal for safe vertical transportation of both manpower and materials on demanding sites.
Standard Electrical Safety Features
-
Interlocking devices on cage doors & enclosure doors
-
Top & bottom limit switches
-
Over-travel final limit switches (top & bottom)
-
Erection platform interlocking device
-
Cable jamming protection device
-
Safety device actuation detector
-
Top, bottom & emergency stop buttons
-
Emergency stop switches on car, control box & base panel
-
Main power supply isolator switch
-
Rack searching device for accurate engagement
Standard Mechanical Safety Features
-
Twin motors with gearboxes & electro-mechanical brakes
-
Certified safety device (PSD-3500)
-
Floating motor plate for smooth load distribution
-
Bottom mechanical stops with energy-absorbing buffers
-
Anti-slippery floor inside cage
-
Motor protective covers
-
Manual brake release system for emergency lowering to nearest floor
General Technical Specifications
| Model | PM150 | PM200 | PM220HS |
|---|---|---|---|
| Rated Capacity | 1500 KG | 2000 KG | 2000 KG |
| Speed | 30 m/min | 30 m/min | 54 m/min |
| Max Working Height | 200 m | 200 m | 200 m |
| Gear Rack Module | 5 | 5 | 5 |
| Safety Device | PSD 3500 | PSD 3500 | PSD 3500 |
| Wall Tie Interval | 6 m | 6 m | 6 m |
| Cable Guide Interval | 6 m | 6 m | 6 m |
| Cage Size (Internal) | 2.5 × 1.4 × 2.1 m | 3.0 × 1.4 × 2.1 m | 3.0 × 1.4 × 2.1 m |
| Erection Crane | Electrical | Electrical | Electrical |
| HMI Display | Yes (Colour) | Yes (Colour) | Yes (Colour) |
| Floor Selection | Optional | Optional | Optional |
| Load Cell | Optional | Optional | Optional |
Mast Section Details
-
Square Mast: 450 × 450 mm × 1.5 m
-
Round Tube: Ø60 mm / Ø260 mm × 4.5 mm thickness
-
Heavy-duty mast design ensures stability at extreme heights
Electrical Data
| Model | Motor Power | VFD Rating | Power Supply |
|---|---|---|---|
| PM150 | 2 × 9.5 KW | 22 KW | 400V (±5%), 50 Hz |
| PM200 | 2 × 13.0 KW | 30 KW | 400V (±5%), 50 Hz |
| PM220HS | 2 × 19.0 KW | 45 KW | 400V (±5%), 50 Hz |
| FEATURES | SPM 150V | SPM 200L | SPM 200/250V |
|---|---|---|---|
| Model | Rack & Pinion Passenger & Material Hoist | Rack & Pinion Passenger & Material Hoist | Rack & Pinion Passenger & Material Hoist |
| Capacity | 1.5 Ton | 2.0 Ton | 2.0 Ton (Per Cage) |
| Max Height | 150 mtr. | 150 mtrs. | 250 mtrs. |
| Speed | 30 mtr/min | 30 mtr/min | LS: 30 mtr/min HS: 60 mtr/min |
| Motor Capacity (Rossi Motor) | 8.45 kW (87Hz) x 2 nos. | 9.57 kW (87Hz) x 2 nos. | LS: 9.6 kW x 2 per cage HS: 19.13 kW x 2 per cage |
| Safety Device | SSD 3500 | SSD 3500 | SSD 3500 |
| VFD Capacity | 22 kW | 22.5 kW | LS: 30 kW per cage HS: 45 kW per cage |
| Cage Size (LxWxH) | 2.5 x 1.4 x 2.3 mtr | 3 x 1.4 x 2.3 mtr | 3 x 1.4 x 2.3 mtr |
| Wall Tie Interval | 6 mtr | 6 mtr | 6 mtr |
| Mast Size (mm) | Square Tube: 450 x 450 x 1508 | Square Tube: 450 x 450 x 1508 | Square: 500 x 500 x 1508 |
| Section Thickness | 50 x 50 x 4 mm | 50 x 50 x 4 mm | Up to 150m: 60 x 60 x 4 150–250m: 60 x 60 x 6 |
| Foundation Size | 3.0 x 3.4 x 0.25 mtr | 3.5 x 3.4 x 0.3 mtr | 4.1 x 5.3 x 0.3 mtr |
